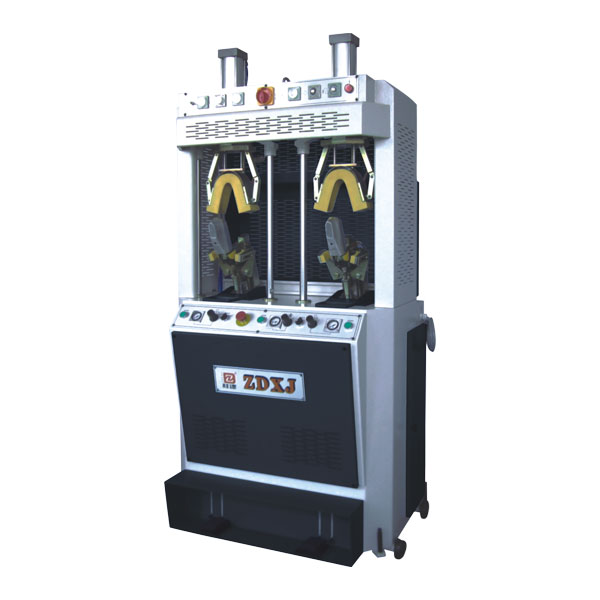

HEEL-SHAPING MACHINE
ZD-HGD600
CHARACTERISTICS
◆ It’s for shaping shoe-heel before lasting process.
◆ The working site can be overturned to users. Who can put vamp aim at the very position quickly and easily.
◆ The heel curve of processed vamp can well match that of last.
Description
| MODEL | ZD-HGD600 |
| Dimensions(LWH) | 800*650*1950(mm) |
| Packing size(LWH) | 900*750*2110(mm) |
| Productivity | 800Pairs/8Hours |
| Weight | 400Kg |
| Air pressure | 0.8MPa |
| Power | 2Hp |
| Voltage | 3Phases 380v 50Hz/220V 60Hz Single phase 220V 50Hz/110V 60Hz |
| Hydraulic oil | No.46 anti-abrade oil |
Machine appearance, technical performance parameters and characteristics are subject to change without notice.
